Fishing Spear

Product Number: KW-DE-16 It can be used to catch drill pipes, tubings, washover pipes, liners, packers, water allocators and reverse stuck fishes,etc.

We're here to help:
Easy ways to get the answers you need.

+86-029-88601839
+86-029-88601839
kingwell@kingwelloilfield.com

KINGWELL Fishing Spear Features & Benefits:

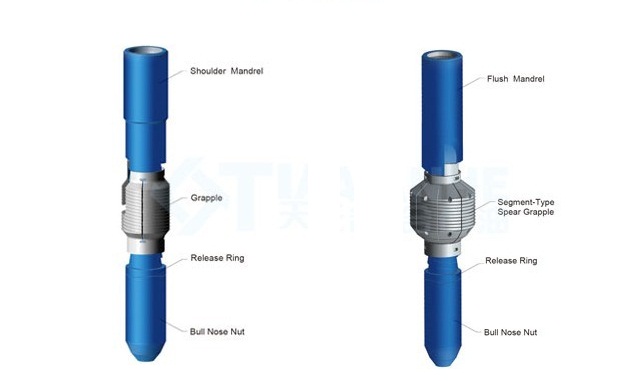

The Sliding Block Spear is an internal catch fishing tool, which can be used both to catch drill pipes, tubings,
washover pipes, liners, packers, water allocators and reverse stuck fishes or used with others tools. (Such
as bumper jars, back off sub etc.).

The block spears are furnished in two types: releasing sliding block spear and releasing two blocks spear.

KINGWELL Fishing Spear Technical Data:

No.	Type	O.D.	Conn.	Specification
No.	Type	mm	API	Fishing I.D.	Tool Length
1	HLM-D(S)48	73	2 3/8TBG	38	. . 550,650,750,800,1000,1200,1500,1800,2000
2	HLM-D(S)60	86	NC26	42~53.8
3	HLM-D(S)73	105	NC31	52.6~64
4	HLM-D(S)89	105	NC31	64.1~77.9
5	HLM-D(S)102	105	NC31	77.6~92.1
6	HLM-D(S)114	121	NC38	90~102.5
7	HLM-D(S)127	121	NC38	103~117.8
8	HLM-D(S)140	135	NC38	115.7~129.3
9	HLM-D(S)168	165	NC38	138.3~156.3
10	HLM-D(S)178	175	NC50	152.3~168.1
